Description

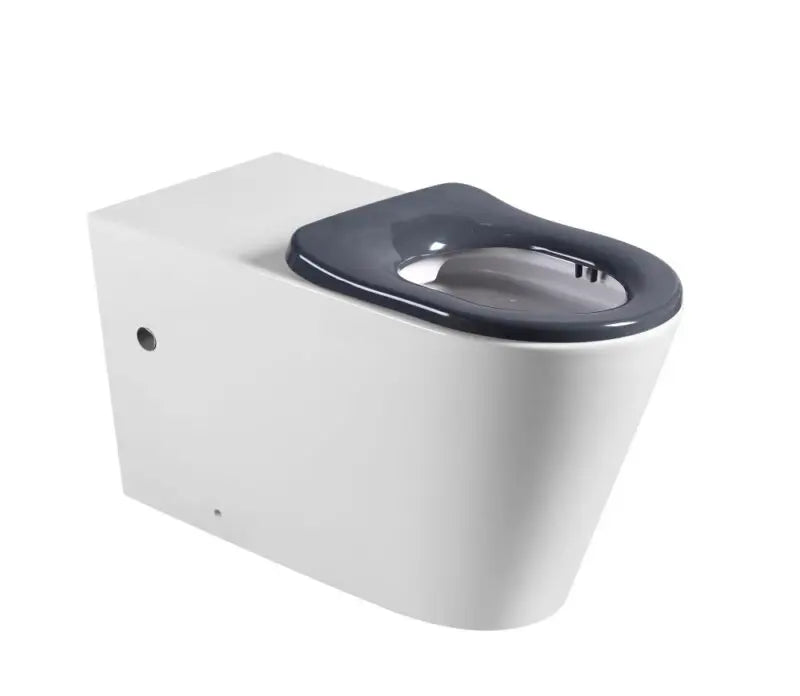

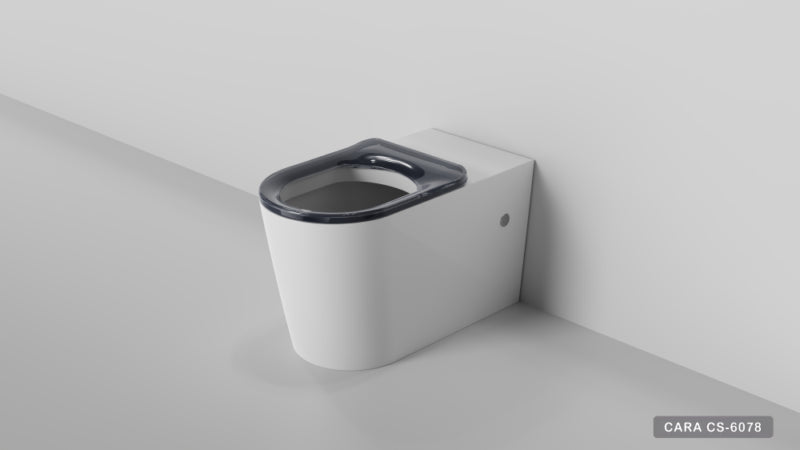

The Cara Care Wall Faced Rimless Floor Pan (Model CS-6078) is a DDA-compliant toilet suite designed to meet accessibility requirements for mobility-impaired users. Featuring a modern rimless pan for improved hygiene and a pneumatic flush plate system for smooth and effortless flushing, this suite is ideal for commercial, healthcare and accessible residential bathrooms.

The pneumatic flushing system operates using air pressure, providing reliable performance and easy activation, while maintaining a clean and contemporary wall-faced design.

Key Features & Benefits

• Designed for DDA accessibility compliance

• Wall faced rimless floor pan design

• Pneumatic flush plate operation

• 3.5L average flush

• Hygienic rimless bowl for easier cleaning

• Accessible seat height

• Suitable for commercial & healthcare facilities

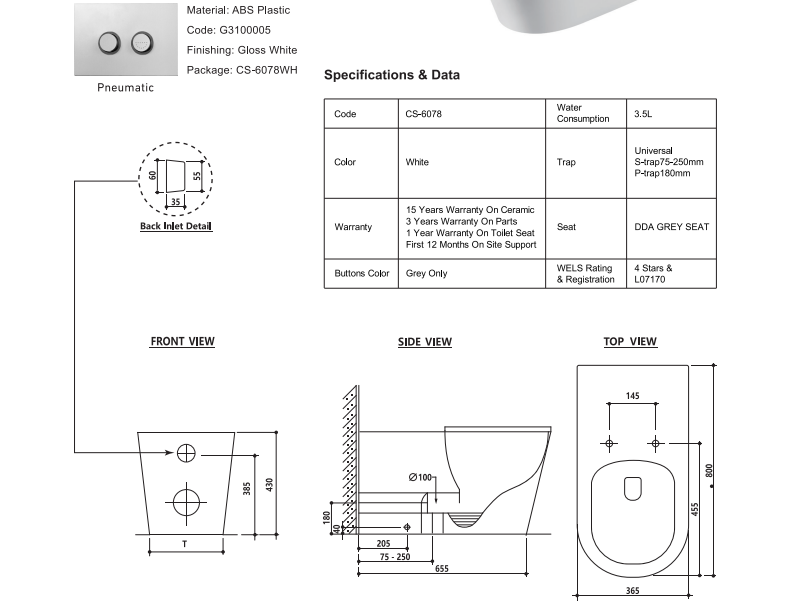

Specifications

• Model: CS-6078

• Type: Wall Faced Rimless Floor Pan

• Flush Type: Pneumatic Plate

• Average Flush: 3.5L

• Size: 800mm (H) × 365mm (W) × 430mm (D)

• S-Trap: 75–250mm

• P-Trap: 180mm

Flush Plate Details

• Material: ABS Plastic

• Code: G3100005

• Finish: Gloss White

• Package: CS-6078WH
